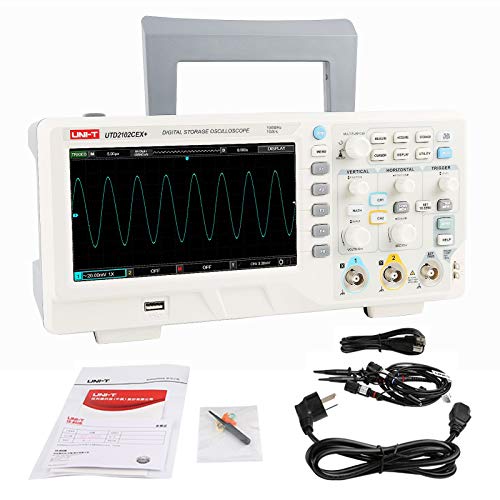

UNI-T UTD2102CEX+ High-Precision 100MHz Desktop Digital Storage Oscilloscope for Laboratory and Electronic Repair Waveform Tester

Specifications：

Model: UTD2102CEX+

Channels: 2

Bandwidth: 100MHz

Sampling rate: 1GS/s

Rise time:＜3.5ns

Memory depth: 64kpts
Waveform capture rate >5, 000wfms/s

Vertical scale (V/div): 1mV/div~20V/div

Time base scale (s/div): 2ns/div~50s/div
Timing accuracy≤±（50+2 × service life ）ppm

Storage methods: Setup, wave, bitmap

Auto measurements: Pk-Pk , Ampl, Max , Min, Low, Middle, High, Mean, RMS，OverSht,, PreSht, Period, Frequency、Rise, Fall, +Width，-Width, -Duty, +Duty,Delay,Phase，FRR,FRF,FFR,FFF,LRR,LRF,LFR,LFF,34 paramet ers in total

Displayed measurements: Display 5 measurements at the same time

Frequency counter: 6 bits
Interface: USB OTG,Pass/Fail

Package included:
1x UTD2202CEX+
1x Power Cable
1x USB interface cable
2x Passive Probe
1x User manual
