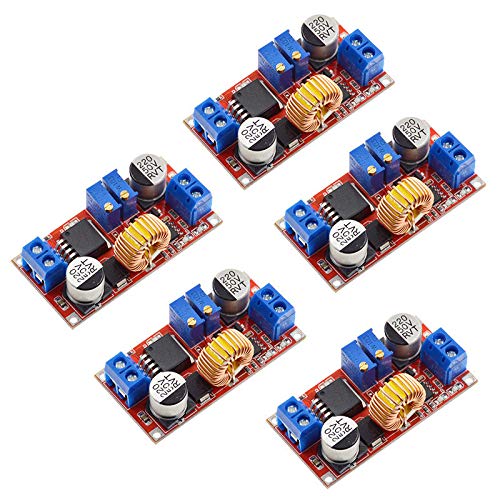

5pcs Lithium Battery Charger Module Board 5A DC naar DC CC CV LED Driver Step Down Buck Converter Board Constant Current Voltage XL4015 (XL4015)

Description:
Input voltage: 4 -38 V
Output voltage:1.25 -36 V continuously adjustable
Output current:Adjustable maximum 5A
Output power:Max 75 W
Working temperature:-40 ~ ++ 85 degrees
Working frequency:180 KHz
Turnover efficiency:Maximum 96%
Short circuit protection:(Limited flow 8A)
About temperature protection:Yes (about temperature, automatic turn off output).
Input Reverse Connection Protection:No, if necessary, input a high flow diode into the input.
Installation:4 3mm wires.
Connection mode:Terminal or welding terminal, V -IN as input and V -OUT as output.
Module size:Long 61.7mm width 26.2mm high 15mm

Package includes:
5 pcs 5A DC to DC CC CV Lithium Battery Step down Charge Board
